Example 3 — Two-Compartment IV (ADVAN3)

Model: 2-compartment IV bolus, ADVAN3 with micro-rate mapping in $PK, First Order Script: examples/03_two_compartment_iv.py

Demonstrates estimation with a 2-compartment model on simulated IV data.

Model

result = (
    ModelBuilder()
    .problem("2-cmt IV ADVAN3 FO")
    .data("two_cmt_iv.csv")
    .subroutines(advan=3, trans=1)
    .pk("""
        CL = THETA(1) * EXP(ETA(1))
        V1 = THETA(2) * EXP(ETA(2))
        Q  = THETA(3)
        V2 = THETA(4)
        K   = CL / V1
        K12 = Q / V1
        K21 = Q / V2
    """)
    .error("Y = F * (1 + EPS(1))")
    .theta([(0.01, 1.6, 30),
            (1.0, 8.0, 100),
            (0.1, 0.64, 10),
            (1.0, 8.0, 100)])
    .omega([0.4, 0.4])
    .sigma(0.05)
    .estimation(method="FO", maxeval=600)
    .build()
    .fit()
)

Output

openpkpd/estimation/fo.py:114: UserWarning: ETA1 shrinkage is 100.0% (>30%). EBE-based analyses for this parameter may be unreliable.
  res.compute_shrinkage()
openpkpd/estimation/fo.py:114: UserWarning: ETA2 shrinkage is 100.0% (>30%). EBE-based analyses for this parameter may be unreliable.
  res.compute_shrinkage()
Running FO on 2-cmt IV model...
Method: FO
OFV: -40.8415
AIC: -24.8415
BIC: inf   (n_obs = 0)
n_parameters: 8
Converged: True
THETA: [ 1.24529389 94.17357065  0.20316919  3.04172412]
OMEGA (diagonal): [77.09224477  0.99739723]
SIGMA (diagonal): [0.00601016]
ETA shrinkage: ['100.0%', '100.0%']
Shrinkage warnings:
  ETA1 shrinkage is 100.0% (>30%). EBE-based analyses for this parameter may be unreliable.
  ETA2 shrinkage is 100.0% (>30%). EBE-based analyses for this parameter may be unreliable.

Figures

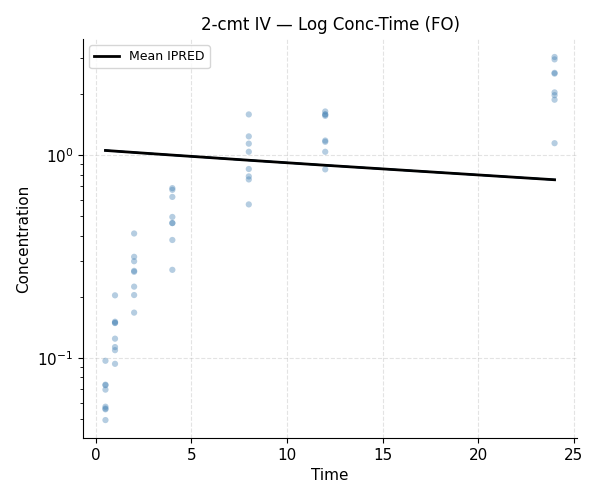

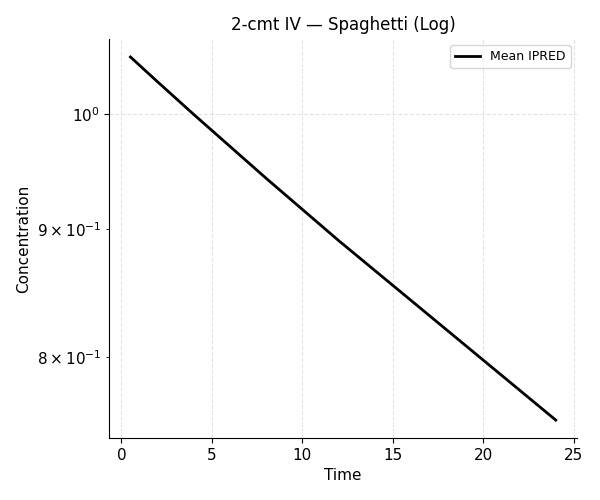

Log concentration-time Spaghetti log

Biexponential decline

The 2-compartment model produces a biexponential concentration-time profile. On a log scale this appears as two distinct slopes (distribution and elimination phases).

Notes

ADVAN3 uses eigenvalue decomposition of the 2×2 rate constant matrix.
With small sample sizes FO may converge to a local minimum — try FOCE if estimates look unreasonable.
Peripheral compartment initial estimates (Q, V2) often need careful tuning; start near physiologically reasonable values.
